圖一：反平行可控硅模塊SEMiSTART設計專用于軟啟動裝置
在線直接起動器
三相感應電機（異步電機）在線直接啟動需要一個很高的電動機啟動力矩及啟動電流。高的電動機啟動力矩可以導致機械損傷；例如，將會撕破三相感應電機帶動的傳送帶。高啟動電流可以導致網格內的電壓尖脈沖。電動機越大這種影響也越大，為了防止不希望的損傷，在啟動階段感應電機的電壓是受到控制的，這意味著啟動電流和啟動力矩可以受到限制（見圖二）。

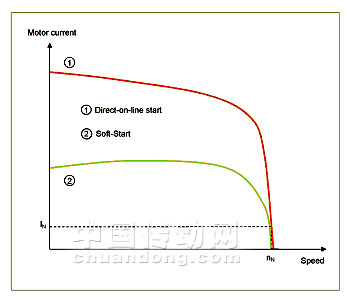

圖二：直接在線啟動和軟啟動電動機電流
星形三角形起動器
星形三角形起動器（即星/三角轉換起動器）是一個簡單的方案，當電動機提高運轉速度時電動機定子繞組以星形接法連接，一旦電動機達到了額定轉速，繞組即以三角接法連接，以星形連接的方法啟動的作用是：在電動機達到正常轉速的過程中經過每個定子繞組的電壓是正常經過定子繞組電壓的三分之一。從星形接法轉到三角形接法通常是通過一個機械接觸器來完成的。然而，因為只有兩種交換連接法（星形接法和三角形接法），控制也就不是一個很適當的方法，此外，機械接觸器由于火花容易造成磨損而需要替換，這種起動器控制維修率很高。
軟起動器
在啟動階段控制感應電機的電壓需要一個軟啟動裝置（軟啟動器）。軟啟動器需要一個可控硅來控制電壓。（見圖三）

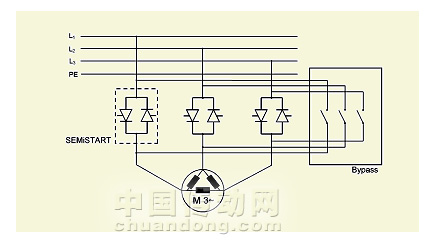

圖三：軟啟動原理示范
反平行可控硅在電動機繞組和網格間串聯，在加速到正常運行速度期間（斜坡啟動）經過電動機繞組的電壓是相位控制的。觸發何時延遲意味著起動力矩和啟動電流可以設定到期望值。軟啟動控制的領一個優點在于啟動時間也可以得到控制。
通過可控硅的電流在半導體中產生功率消耗，這就使得半導體受熱，然后半導體需要冷卻，為了阻止斜坡啟動階段后功率的進一步消耗，半導體通過一個機械開關（接觸器）旁通。旁通開關可以相對較小，因為無需開關大電流負荷。系統已經達到了額定運行速度，無需通過旁落開關轉換更大的電壓降落，唯一的電壓降落是來自軟啟動器的構造設計和通過可控硅的觸發。這即意味著無需轉換更大的電流負載，這就使得軟啟動器維護率非常低。
半導體要求
為了確保軟啟動器同時具有緊湊和高性價比的特性，而不降低其可靠性，軟啟動器中的半導體需要滿足重要的要求。
即使當軟啟動器在啟動階段運用的啟動電流是額定電流的幾倍（3-5倍），在大規模系統中，啟動電流峰值通常達到好幾千安培，因此半導體必需能夠帶動這樣的高啟動電流，同時，軟啟動器必需經濟實惠并且盡可能簡潔，因此，所用的半導體必需盡可能小（包括散熱片）。
出于成本的原因，在實際中運用可控硅元件，其額定電流遠遠低于大型系統啟動電流。這就是可控硅芯片在短暫的啟動階段充分加熱的原因，即：從T斜坡啟動溫度40°C到130°C，芯片溫度相差90K。如果系統每天轉換三次，每天8小時，那么十年后負載總變化將達到87，600小時?？煽毓璞匦枘軌蛟跀凳陜瘸惺軉与A段的過載電流。
直到現在，軟啟動生產商在為其設備尋找適宜的半導體方面還存在困難。這也是反平行可控硅模塊SEMiSTART可插足的市場，因為該模塊是專為軟啟動裝置研發。
安裝和連接技術
組裝和連接硅片有多種不同的方法。在許多模塊中，用單面模塊冷卻將硅片同時焊接在陰極和陽極。（見圖四）

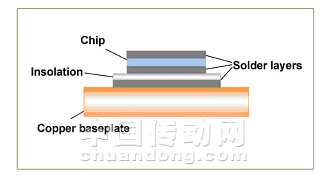

圖四：焊接模塊原理
積聚在模塊中的熱量通過底盤（單面冷卻）分散到散熱片。一個特殊的問題是可控硅模塊單個元件具有不同的熱膨脹系數。在帶有焊接頭的模塊中，可控硅芯片，焊料和銅（主端子）有不同的膨脹系數。
隨著時間推移，由于負荷循環操作，不同的膨脹系數導致連接芯片和銅端子的焊料疲勞，結果出現焊料分層，即：焊料層出現細裂紋。焊料疲勞裂紋又導致熱電阻增加，反過來，熱電阻的增加導致了芯片溫度升高，從而最終導致芯片失效。事實上，焊接模塊中芯片失效不常發生。
模塊是基于壓力接點技術的，與之相反的是，芯片通過接點壓力連接在主端子間，在這些模塊中，主端子間不焊接芯片，而需要一個非常高的接點壓力以固定主端子間的芯片。事實上，在高功率負荷應用中（額定電流>200A），運用壓力接點技術連接的元件由于沒有運用焊接，其負荷循環能力連接相對較高。
這就是賽米控推薦在大額定電流的軟啟動裝置中使用壓力接點元件的原因。而在SEMiSTART中也使用了壓力接點技術。（見圖五）

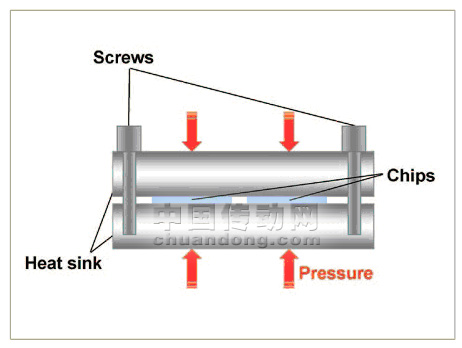

圖五：SEMiSTART模塊中所用壓力接點技術
SEMiSTART模塊中在兩個散熱片間模壓可控硅芯片
這種安裝和連接類型不包括焊接層，這也是SEMiSTART模塊擁有卓越的負荷循環能力的原因，也正是由此使其擁有長效的使用壽命。
散熱片選擇最佳尺寸以適合芯片的尺寸和軟啟動裝置，這就使得模塊非常簡潔小巧，可控硅和散熱片間的總熱阻遠低于其他傳統元件總熱阻。因為芯片直接模壓在散熱片間，同時受到兩面冷卻，熱阻就非常低。另外一個優勢就是安裝SEMiSTART模塊非常方便，與安裝模塊一樣，在安裝塑封可控硅，時也無需特殊夾具，另外，在安裝模塊時也無需熱膠。
當然，SEMiSTART模塊可以應用于其他方面，如保護電路。SEMiSTART模塊有三種不同尺寸和五種不同的電流等級。二十秒鐘最大電流時間（斜坡啟動時間）電流在500A – 3000A間?？煽毓钄鄳B(tài)電壓最大1800V。
結論
未來幾年內，由于這些軟啟動控制元件方案較傳統元件更為突出，軟啟動市場將繼續發展，由于使用了雙面可控硅芯片冷卻及其緊湊的設計，軟啟動器反平行可控硅模塊SEMISTART較傳統模塊產生一半的熱阻。因此會出現短期的較高過電流，此外，由于使用了壓力接點技術，這些模塊具有高度可靠性。
original text
[COLOR=#708090][b]POWER ELECTRONICS EUROPE
MOTOR CONTROL
Soft-Start Control of Electric Motors
Soft-Start Control of Electric Motors[/b]
Figure 1：The anti-parallel thyristor module SEMiSTART is designed specifically for use in soft-start devices
For a three-phase induction motor direct on-line start involves a very high motor starting torque and a very high starting current. Semiconductors in soft-start devices must be extremely robust to resist considerable chip temperature changes and must demonstrate very good load cycle capability. The antiparallel thyristor module SEMISTART for soft-starters provides half the internal thermal impedance of conventional components, thanks to double-sided thyristor chip cooling and thus, ensures high over-current capability for the starting period. Norbert Schafer and Ralf Herrmann, SEMIKRON, Nuremberg, Germany
The anti-parallel thyristor module SEMiSTART （Figure 1）, designed specifically for use in soft-start devices, provides half the internal thermal impedance of conventional components in modular designs, thanks to double-sided thyristor chip cooling. This compact module also uses proven pressure contact technology. In practice, three different types of motor starter control are used which are described in the following.
Direct on-line starters
For a three-phase induction motor （asynchronous motor）, direct on-line start involves a very high motor starting torque and a very high starting current. The high motor starting torque can lead to mechanical damage; for instance, the conveyor belt driven by the three-phase induction motor may tear. The high starting current can also result in voltage spikes in the grid. The larger the motor, the more serious the effects. To combat such undesired effects, the voltage applied to the induction motor during the start-up phase is controlled. This means that the starting current and, consequently, the starting torque can be limited （see Figure 2）.
Figure 2： Motor current at direct on-line start and with soft start
Star-delta starters
A simple solution is the star-delta starte （also known as the wye-delta starter）. Here, the motor stator windings are connected in star （or wye） connection as the motor accelerates up to its running speed; once the motor reaches near rated speed, the windings are connected in delta. The effect of starting in star connection is that the voltage across each stator winding during the build-up to normal running speed is 1/3 of the normal. The changeover from star to delta connection is normally done using a mechanical contactor. As, however, there are only 2 switch connections （star and delta）, controlling‘ is not a particularly appropriate term in this case. Moreover, this type of starter ‘control‘ is not low- maintenance, as the mechanical contactors are prone to wear caused by sparking and need to be replaced.
Soft-starters
To control the voltage applied to the induction motor during the start-up phase, a soft-start device （soft starter）, is needed. In soft starters, thyristors are used for voltage control （see Figure 3）.
Figure 3：Principle schematic of a soft starter
Two anti-parallel thyristors are connected in series between the motor windings and the grid. During the run-up to normal running speed （ramp-up）, the voltage across the motor windings is the controlled by way of phase control. Depending on when the thyristors are fired （trigger delay angle a）, this means that the starting torque and the starting current can be set to desired values. A
further advantage of soft-start control is that the starting time can also be controlled.
The current flowing through the thyristors produces power dissipation in the semiconductors. This power dissipation heats up the semiconductors, which then have to be cooled. To prevent further power dissipation in the semiconductors after the ramp-up phase the semiconductors are bypassed by a mechanical switch （mechanical contactor）. This bypass switch can be relatively small since it does not have to switch large loads. The system has already reached normal running speed, no large voltage drop that has to be switched by the contacts of the bypass switch occurs. The only voltage drop is that resulting from the mechanical design and that across the fired thyristors. This means that no large loads are being switched, which is why soft-starters are low- maintenance devices.
Semiconductor requirements
To ensure that a soft-starter is both compact and cost-efficient without compromising reliability, the semiconductors used in a soft-starter must meet a number of important requirements.
Even when a soft-starter is used the starting current during the starting phase of a drive system is still several times larger than the rated current （3-5 times higher）. In large-scale systems, the peak starting current is often several thousand amperes. The semiconductors used therefore have to be able to carry this high starting current during the start phase. At the same time, however, the soft-starter must be cost-optimised and as compact as possible. For this reason, the semiconductors used （including heatsink） must be as small as possible.
Thus, for reasons of cost, thyristor components whose rated current is far lower than the large system starting current are used in practice. This is why the thyristor chips heat up substantially during the brief start phase, e.g. from T Ramp-up = 40°C to T = 130°C, resulting in a chip temperature difference of 90K. If a system is switched on 3 times per hour, 8 hours a day on 365 days a year, the total number of load changes after 10 years is 87,600. These thyristors must be able to carry the overload current that occurs during the start phase for decades.
Up till now, manufacturers of soft-starters have had difficulties in finding the optimum semiconductors for their devices on the market. This is where the anti-parallel thyristor module SEMiSTART steps in, as this module was developed specifically for use in soft-start devices.
Mounting and connecting technology
There are a number of different ways of assembling and connecting a silicon chip. In many modules, the silicon chip is soldered on both sides （anode and cathode side） with single-sided module cooling （see Figure 4）.
Figure 4：Principle behind the solder contact module
The heat that builds up in the module is dissipated to the heatsink via the baseplate （single-sided cooling）. A particular problem here is the different thermal expansion coefficients of the individual components used in a thyristor module. In modules with soldered connections, the thyristor chip, solder and copper （main terminals） have different expansion coefficients.
Over time, these different coefficients lead to fatigue in the solder that connects the chip and the copper terminal due to load cycle operation. As a result, delamination of the solder layer occurs, i.e. fine hairline cracks appear in the solder layer. The solder fatigue cracking then results in an increase in thermal impedance which, in turn, leads to an increase in chip temperature and, ultimately chip failure. In fact, it is not unusual for chip failure to occur in soldered modules.
In modules based on pressure contact technology, by way of contrast, the chip is connected between the main terminals by contact pressure. In these modules, the chip is not soldered between the main terminals. Instead, very high contact pressure （several kN） is applied to ‘retain‘ the chip between the main terminals. In practice it has been shown that, especially in applications with large power loads （rated currents >200A）, the load cycle capability of the components connected using pressure contact technology is far superior owing to the non-use of soldered connections.
This is why Semikron recommends using pressure-contacted components in soft-start devices with larger rated currents. And it is this very pressure contact technology that is used in SEMiSTART （see Figure 5）.
Figure 5：Pressure contact technology used in the SEMiSTART module
In SEMiSTART modules the two thyristor chips are ‘pressed‘ between two heatsinks.
This type of mounting and connection does not contain solder layers, which is why the SEMiSTART modules boast very good load cycle capability and, consequently, a long service life.
The heatsinks are optimally dimensioned for the chip dimensions and for use in soft-start devices. The result is very compact modules. The total thermal resistance between the thyristor chips and heatsink is far lower than that of other conventional components. As the chips are pressed directly between two heatsinks and are cooled on both sides, the thermal resistances are very low. Another advantage is that very little mounting effort is necessary for SEMiSTART modules: no special clamps are needed as is the case when assembling capsule thyristors. Plus, no thermal paste is needed as in the case of module assembly.
SEMiSTART modules can, of course, also be used in other applications, e.g. protective circuits. SEMiSTART modules come in three different sizes and a total of 5 different current classes. The current range is 500A – 3000A for a maximum current flow time （ramp-up time） of 20 seconds. The thyristors have a maximum off-state voltage of 1800V.
Conclusion
The market for soft-starters will continue to grow over the coming years as the advantages that these components boast over conventional solutions become more apparent. The antiparallel thyristor module SEMISTART for soft-starters provides half the internal thermal impedance of conventional components thanks to double-sided thyristor chip cooling and its compact design. Extremely high overcurrents are therefore possible for a short period. What‘s more, thanks to the use of pressure contact technology, these modules offer a high degree of reliability.
