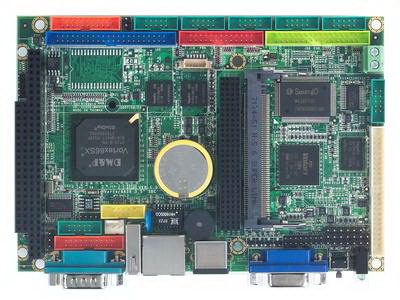

Specifications: SoC DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache Bus PC/104+ standard compliant BIOS AMI BIOS System Memory 128MB DDR2 onboard Watchdog Timer 0 & 1 Sets Software programmable from 30.5 µsec. To 512 sec. x 2 sets （Watchdog 1 fully compatible with M6117D） VGA XGI Volari Z9s Chipset VGA and TFT/LVDS Flat Panel Interface Support Onboard 32MB VGA Memory, support resolution up to 1280 x 1024, 16M colors LAN Integrated 10/100Mbps Ethernet Flash Disk Support Onboard 2MB SPI Flash Disk MSTI EmbedDisk Module （16MB and above） Compact Flash Type I/II I/O Interface Enhanced IDE port （UltraDMA-100/66/33） x1 FDD x1 RS-232 port x7 RS-232/485 port x1 USB port （Ver2.0） x3 Parallel port x1 16-bit GPIO port x2 10/100Mbps Ethernet port x1 Connectors 2.0mm 44-pin box header for IDE x1 2.0mm 44-pin box header for LCD x1 2.0mm 34-pin box header for FDD x1 2.0mm 26-pin box header for Printer x1 2.0mm 20-pin box header for 16-bit GPIO x2 2.0mm 16-pin header for LVDS x1 2.0mm 10-pin box header for RS-232 x7 2.0mm 10-pin box header for USB x1 2.54mm 4-pin header for +12V, -12V, -5V, GND x1 2.54mm 3-pin header for RS-485 x1 1.25mm 6-pin wafer for JTAG x1 0.8mm 124-pin Mini-PCI card connector x1 External 15-pin D-Sub female connector for VGA x1 External 9-pin D-Sub male connector for RS-232 x1 External RJ-45 connector for Ethernet x1 External USB connector x1 External Mini DIN connector for Keyboard/Mouse x1 Type I/II Compact Flash Slot x1 Power Requirement Single Voltage +5V @ 620mA Weight 148g Board Size 102 X 144mm （4.01 x 5.67 inches） Operating Temperature -20°C ～ +70°C -40°C ～ +85°C（Optional） Specifications: Specifications:
